CSUB’s J-Tube Ramp is an innovative GRP support structure designed to protect and support subsea cables and flexibles at the transition between seabed and offshore structures through J-tubes, particularly in Offshore Wind Turbines, Offshore Substations and Offshore Rigs. It enables a simpler, safer and more cost-efficient transition compared to traditional solutions.
J-Tube Ramp
Product Features and Advantages
Innovative Design:

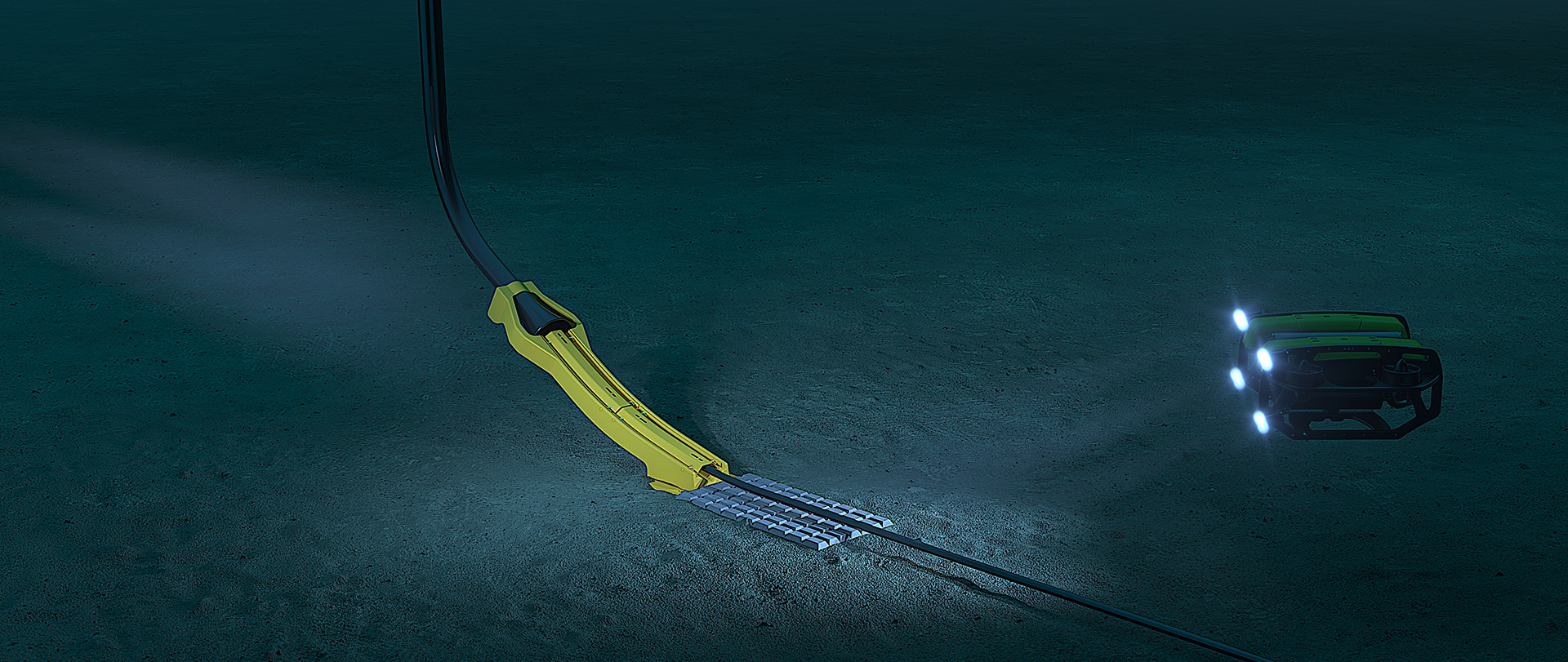

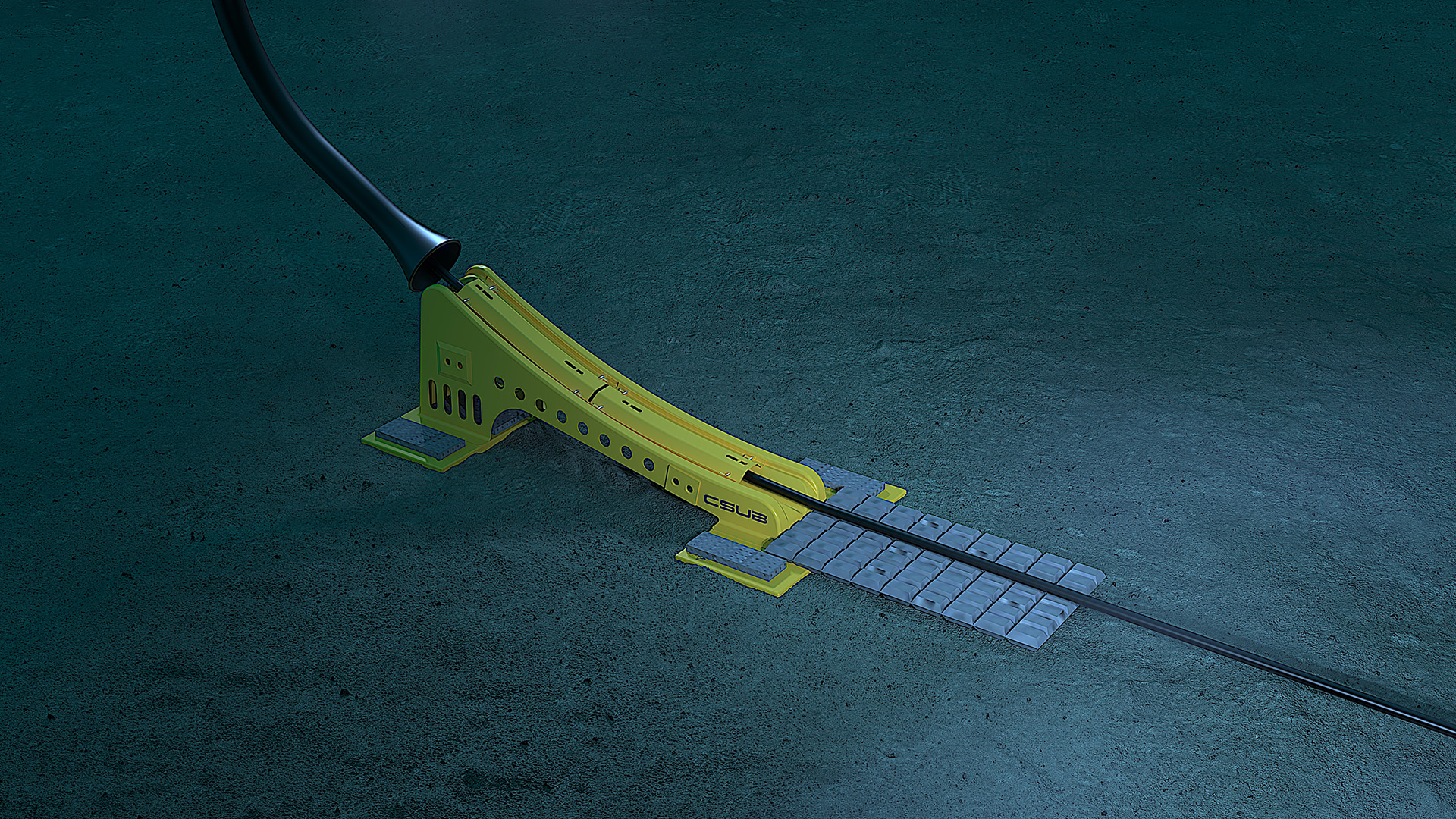

The ramp features a curved support channel that ensures optimal guidance during pull-in operations and reliable support in service. An optional Top Cover provides additional protection against environmental loads and dropped objects, while the ramp facilitates controlled water flow through for cooling. The complete system provides superior long-term fatigue protection throughout its entire lifetime.
Seamless Installation System:
The J-Tube Ramp is designed for streamlined integration with J-tube systems, simplifying offshore installation and reducing overall installation costs compared to traditional solutions. The optional J-Tube Ramp Top Cover uses a simple, reliable locking concept developed by CSUB based on decades of experience with protection covers. With a slim design, the system is well suited for confined spaces where J-tubes are closely positioned.
An upwardly curving base provides flexibility in vertical positioning.
Material Excellence:
Constructed from Glass Fiber Reinforced Polymer (GRP), the structure has a corrosion-resistant and maintenance-free design. Expected design life exceeds 50 years.
Versatile Application:

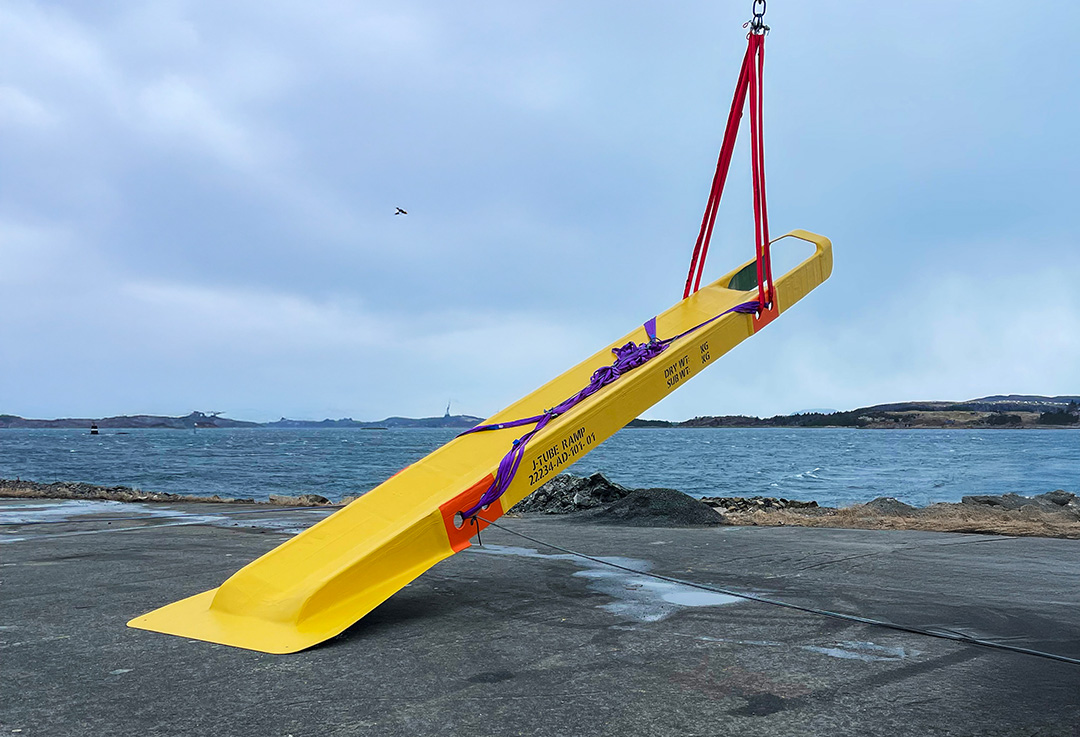

Compatible with multiple cable types and configurable for different seabed conditions, the system is suitable for offshore wind turbines, substations and offshore rigs. As standard, the ramps are delivered as self-stabilizing structures, with options for low-weight ROV-installable units or freestanding structures to meet project-specific requirements.
Proven Track Record:
First delivered nearly a decade ago, CSUB’s J-Tube Ramps have received positive client feedback on simple installation and have proven reliable in operation.
Environmental Benefits:
GRP is an environmentally sustainable material choice for long-life subsea protection and support. Its non-metallic, low-weight design enables efficient installation and long-term, maintenance-free performance.
